Miata Supercharger Standard Kit
*See Details Below for Lead Time Estimates*

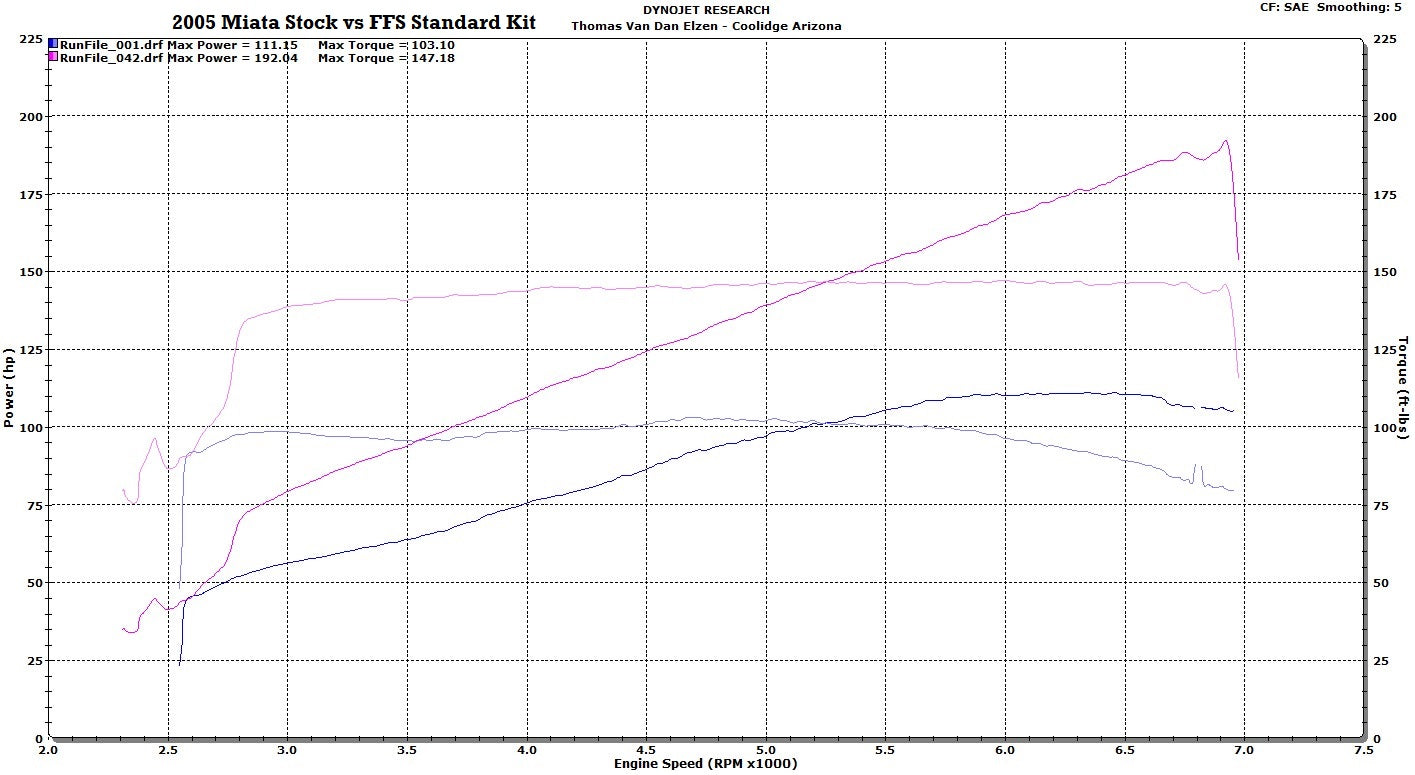

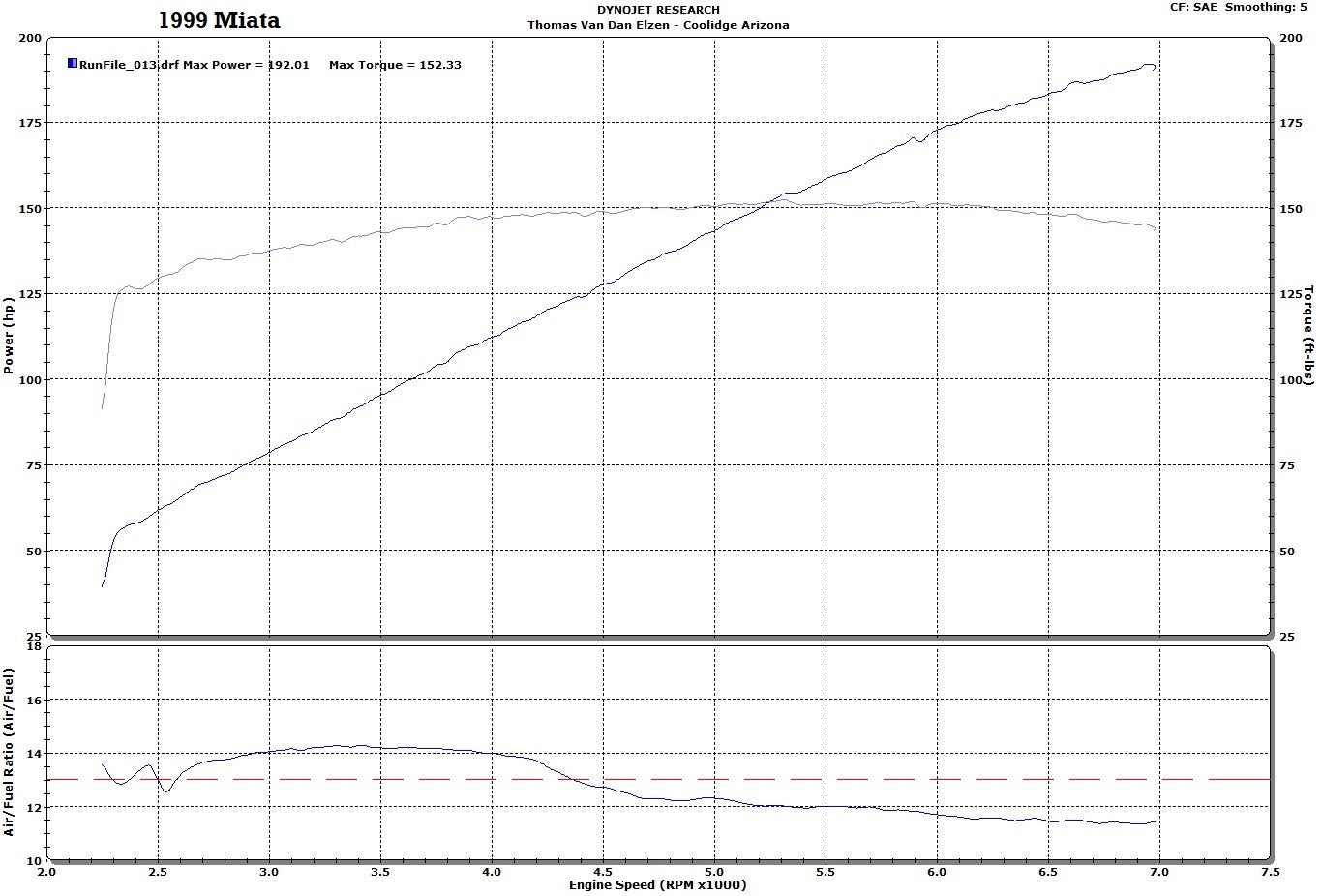

The CARB-approved EO-D-617-2 FFS Supercharger Kit will add 10psi boost and typically dynos 190-200whp* for your 1994-2003 Mazda Miata on 91 octane pump gas!
Our kit includes everything you need to supercharge your Miata! Basic hand tools/supplies and a weekend are all you need to install your kit. We even include plug and play engine management that is fully tuned for 10 psi boost. Truly plug and play.
Each kit comes complete with the following:

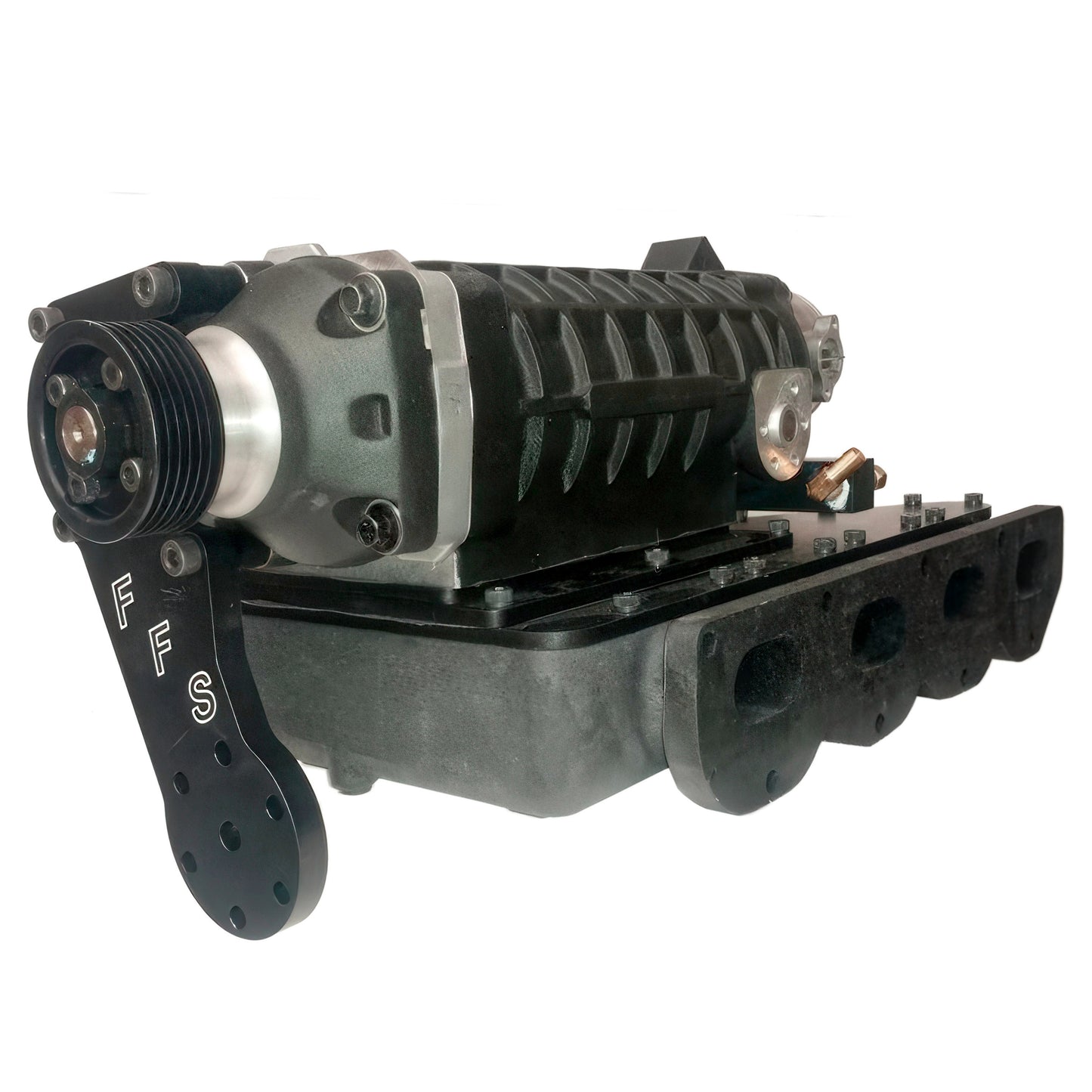

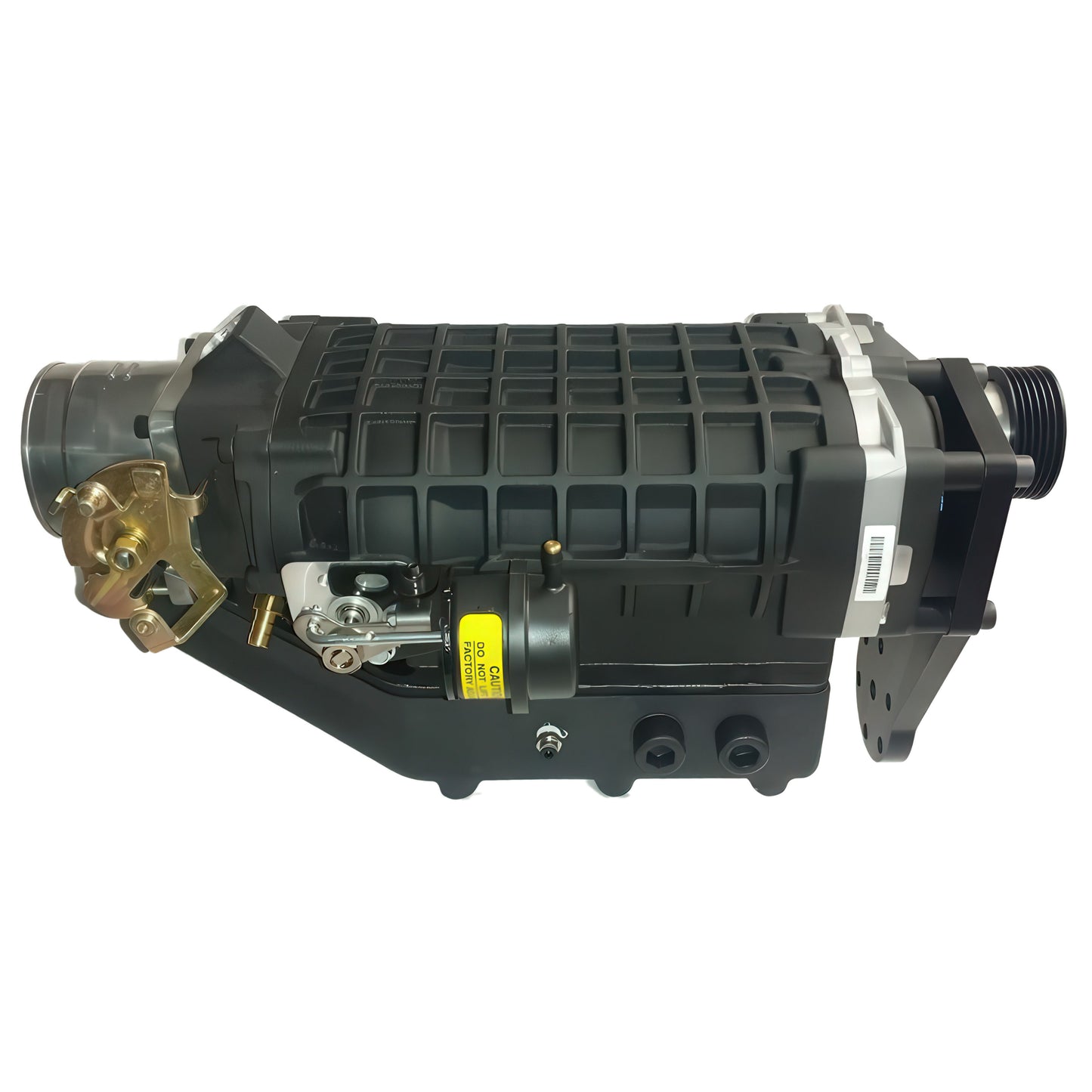

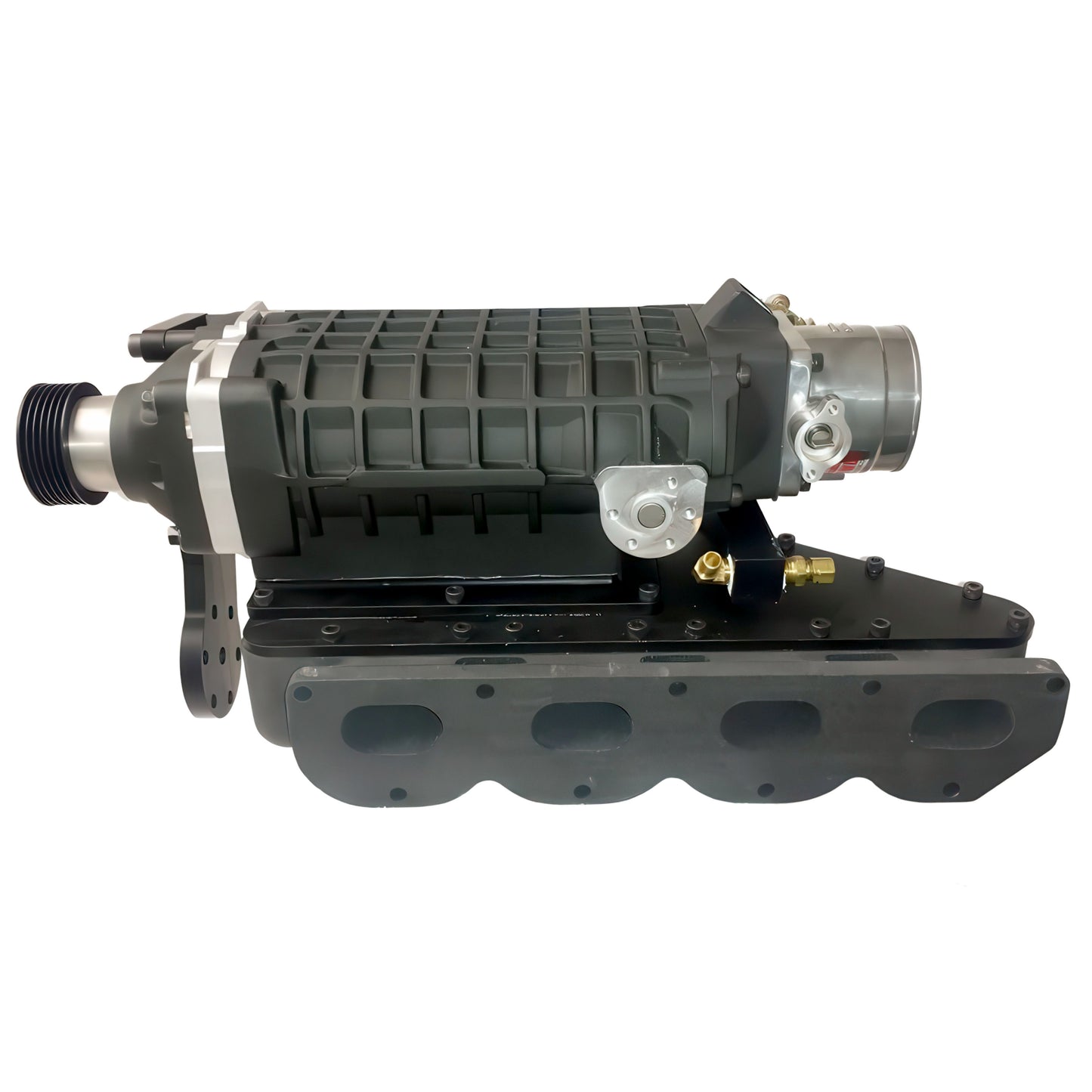

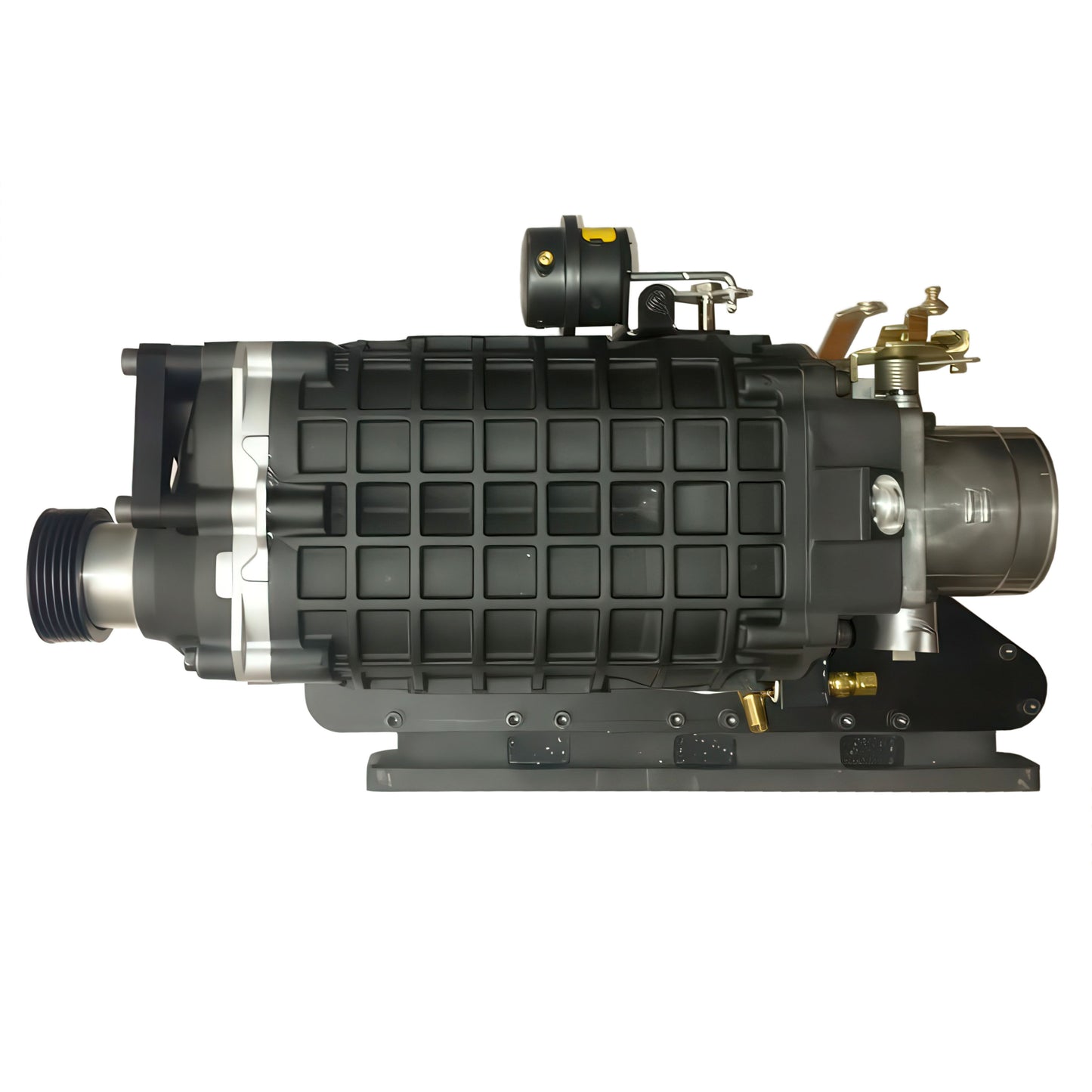

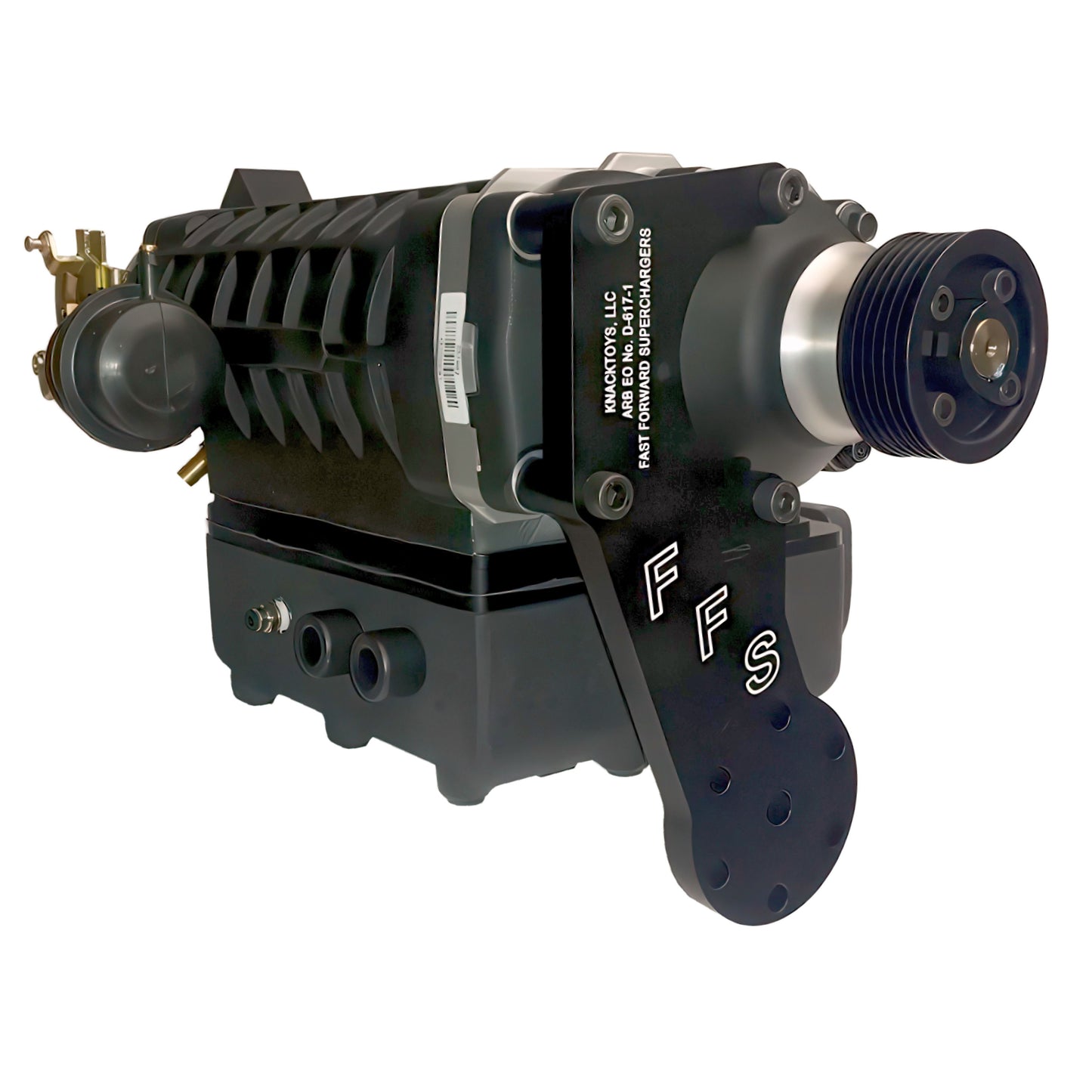

- 6th Generation Magnuson TVS900 Supercharger Specifically Manufactured for FFS
- 75mm High Flow Throttle Body with Billet Throttle Pulley and Heavy-Duty Throttle Cable Bracket with Direct Cable Actuation
- FFS Engineered High Flow Cast Throttle Body Adapter
- FFS Engineered High Flow Cast Intake Manifold with Clearance Channels Cast into Underside for Socket and Swivel Access to Lower Intake Manifold Nuts
- E-Cool™ Fuel Injector Assembly with 1,000cc injector and Dedicated High Flow FFS E-Cool™ Fuel Rail.
- Complete Plug and Play, Pre-Tuned Engine Management with Boost Fuel, Timing Control and E-Cool™
- FFS High Flow Billet Fuel Rail
- Billet Stainless Steel EGR Support Manifold with Stainless Steel Braced Support Bracket for Reliable EGR Tube Support
- Separate 6-Rib Belt and Pulleys with Automatic Belt Tensioner
- 100% compatible with factory Power Steering and Air Conditioning
- Colder Heat Range NGK Iridium Spark Plugs.
- FFS Engineered High Flow Cold Air Intake with Aluminum Constructed Air Box and K&N Air Filter.
- NB Miata features a Coldside Cold Air Intake
- NA Miata features a traditional driver side Cold Air Intake
- Several CNC machined and hard-anodized brackets/manifolds
- Every Bolt, Nut, fitting, and Hose Clamp Required Organized and Labeled for Ease of Installation
- Anti-seize, Thread Sealant, Gaskets.
- Specialty Low-Profile Wrench for Easy Serpentine Belt Installation
- Complete Instructions with Pictures/Diagrams (videos coming soon!)
- Legendary Customer Support
- Custom FFS Keychain and Stickers
- Free Fast Forward Superchargers Windshield Banner (White, Black, or Silver Metallic available, please leave a note if you would like one and which color you would like).
Our cold side supercharger kit keeps the throttled volume low, maintaining the OEM level of refinement for cold starts, idle stability and drivability, with exceptional throttle response. The E-Cool™ system provides up to 1,000cc of additional fuel, allowing for both charge cooling and high power levels with the factory ECU and injectors. The 6-rib belt system with auto-tensioner provides reliable drive with no manual adjustment.
These kits are very reliable. Some customers have put over 100k miles on them!
At Fast Forward Superchargers, we pride ourselves in offering the highest levels of quality to our customers.
Every part is inspected for quality. Every threaded hole is checked. Every fitting/manifold is vacuum/pressure tested for leaks. Many items are pre-assembled as shipped to make installation quick, easy and straightforward. Many parts and assemblies are tested/adjusted in house to ensure they work as intended before being packed. Quality is core value at Fast Forward Superchargers.
All supercharger kits include a 1-year warranty. Professional installation is recommended but not required to maintain the warranty. Just follow the instructions and make sure it’s put together properly.
CARB Listed EO-D-617-2
CARB is only for 1990-2003.
2004 and 2005 has NO CARB approval!!!
Ordering Details
Orders will ship in the order they are received, and on a parts-availability basis.
Current lead time for NB kits is 2-3 months from time of order. NA kit lead time is 2-4 months from time of order. This is an estimate, and it could be longer. We are working hard to get supercharger kits built and shipped.
We are now shipping kits!
If you have any questions, feel free to contact us.
YouTube videos going over the kit:
https://youtu.be/zHjThmRkiEo
https://youtu.be/f9HHBJSyhqU
https://youtu.be/p4e6ZB1xOD4
https://youtu.be/YndfEksdOvQ
https://youtube.com/shorts/G-bT0Qg0mQs?feature=share
https://youtube.com/shorts/y_cGCGO4Hm0?feature=share
https://youtube.com/shorts/LcIDMwy9ICc?feature=share
* As measured on a Dynojet 248C. Subtract 10-20whp for Automatic Transmission due to torque converter losses.
