Miata MX5 Supercharger KITS
|  |
90-93 160 whp+ • 94-05 +190 whp+*
CARB is only for 1990-2003. 2004 and 2005 has NO CARB approval.

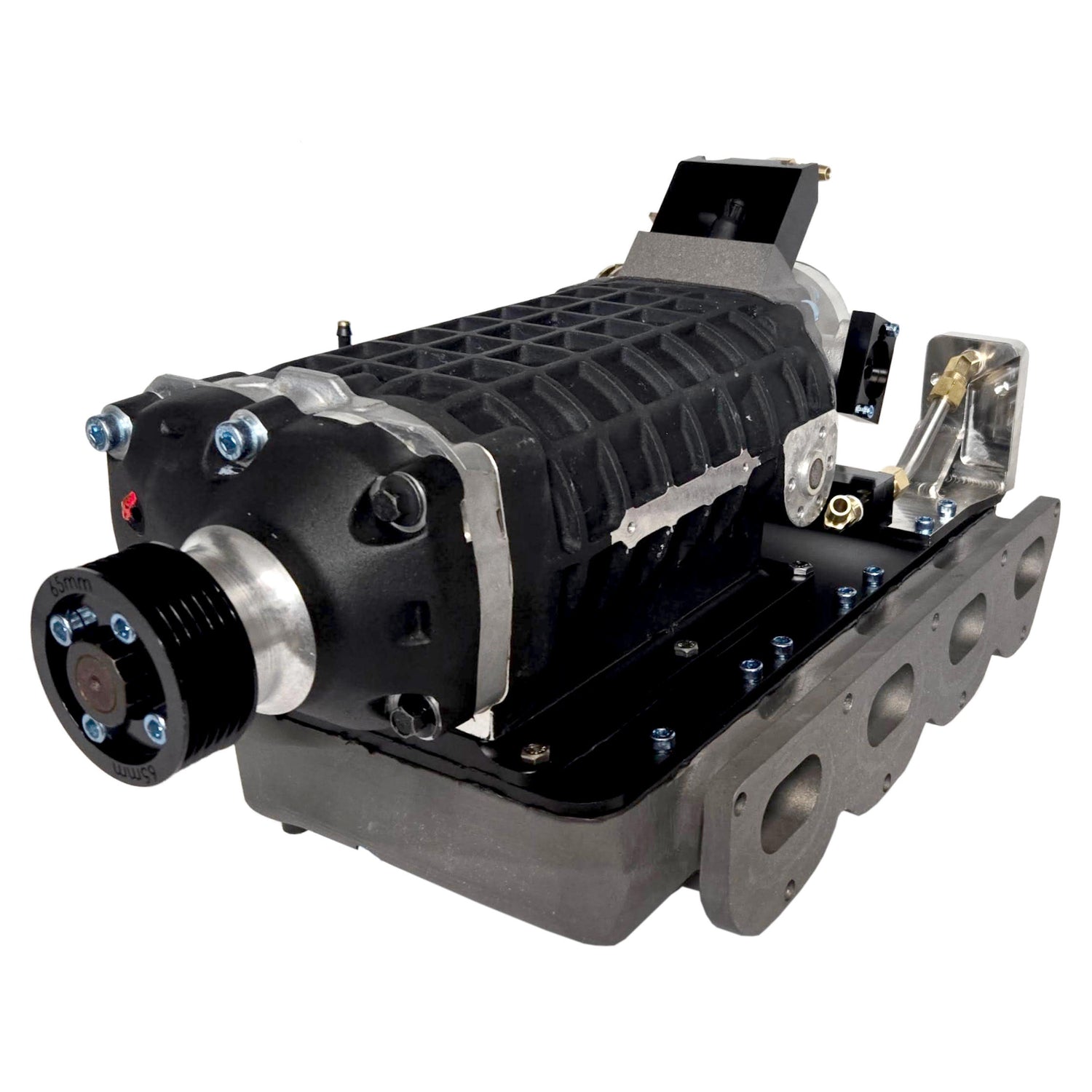

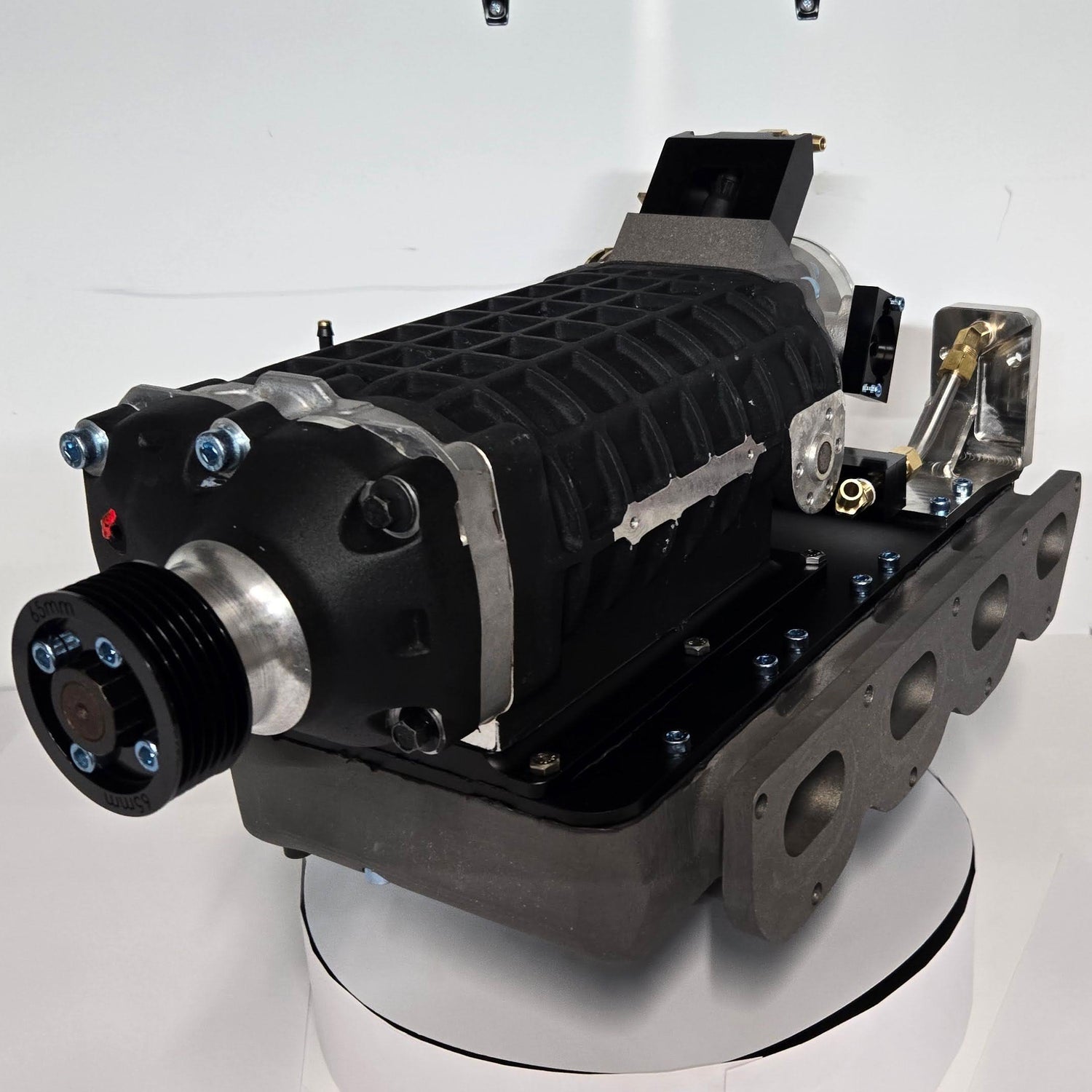

KIT INCLUDES: Eaton TVS 900 Supercharger, Big Throttle Body, Cast Throttle Body Adaptor, FFS Engineered High Flow Cast Intake Manifold, Complete Engine Management with Boost Fuel Control and Boost Timing Control and ECool™ High Flow Fuel Rail, Separate 6 Rib Belt and Pulleys with Automatic Belt Tensioner, Iridium Spark Plugs, and Cold Air Intake. CARB Listed EO D-617-2. Read More Here «
LEAD TIME IN STOCK to 120 days on TVS900
* Subtract 10-20whp for Automatic Transmission due to torque converter losses |
|
|
Accessories |  |
90-91 (If you have a 1991 with VIN 209447 or higher use 91-05 crank pulley)
6 Rib Crank Pulley 110mm
|
|
 |

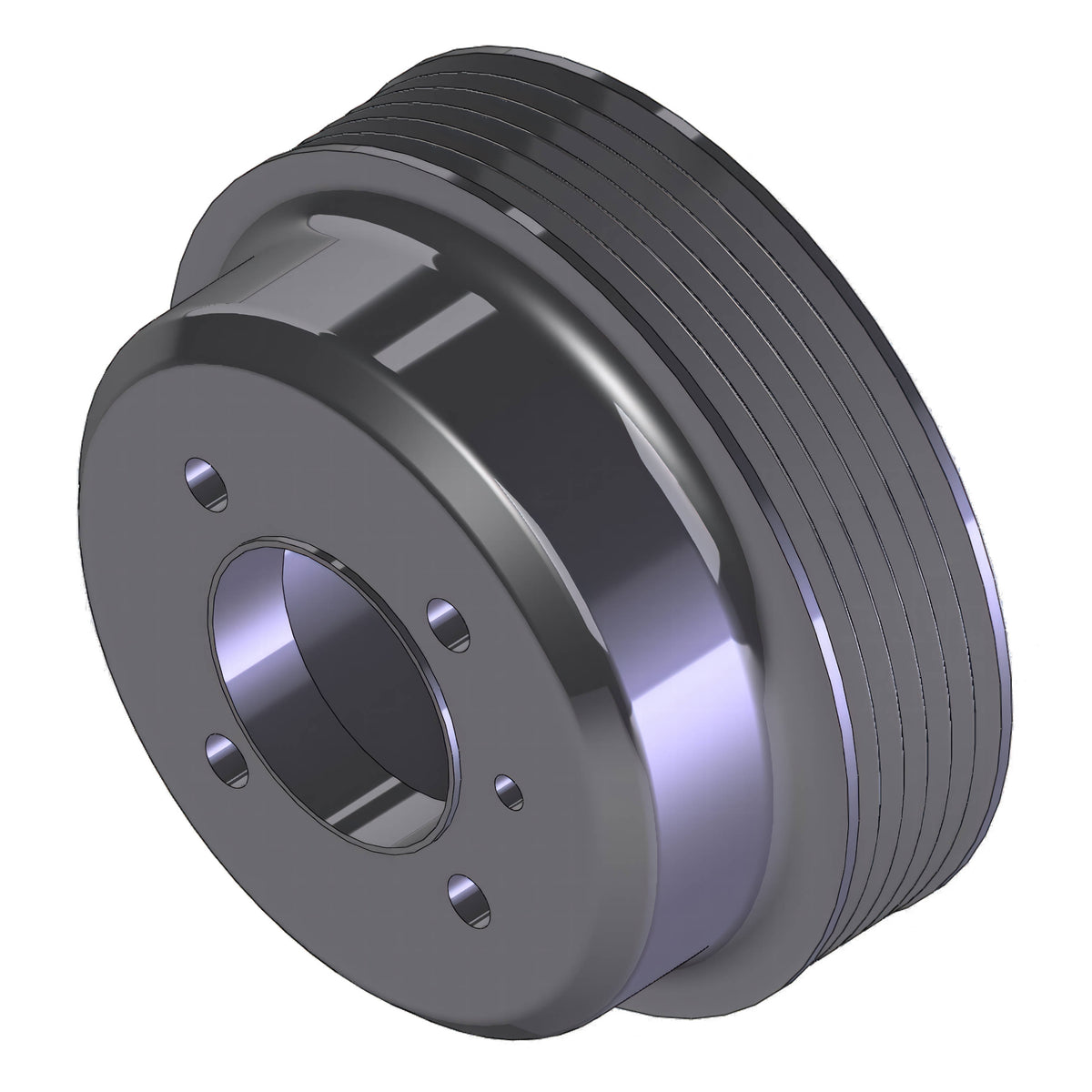

91-05 (If you have a 1991 with VIN 209446 or lower use 90-91 crank pulley)
6 Rib Crank Pulley:
105mm, 110mm, 115mm, 120mm, 125mm, 130mm, 140mm and 150mm
|
|
 |
6 rib pulley for the ATI Superdamper.
(ATI Superdamper NOT included) |
|
 |
90-05
6 Rib MP62 Supercharger Pulley upgrades:
65mm, 75mm, 80mm, 85mm, 90mm and 95mm
|
|
 |
90-05

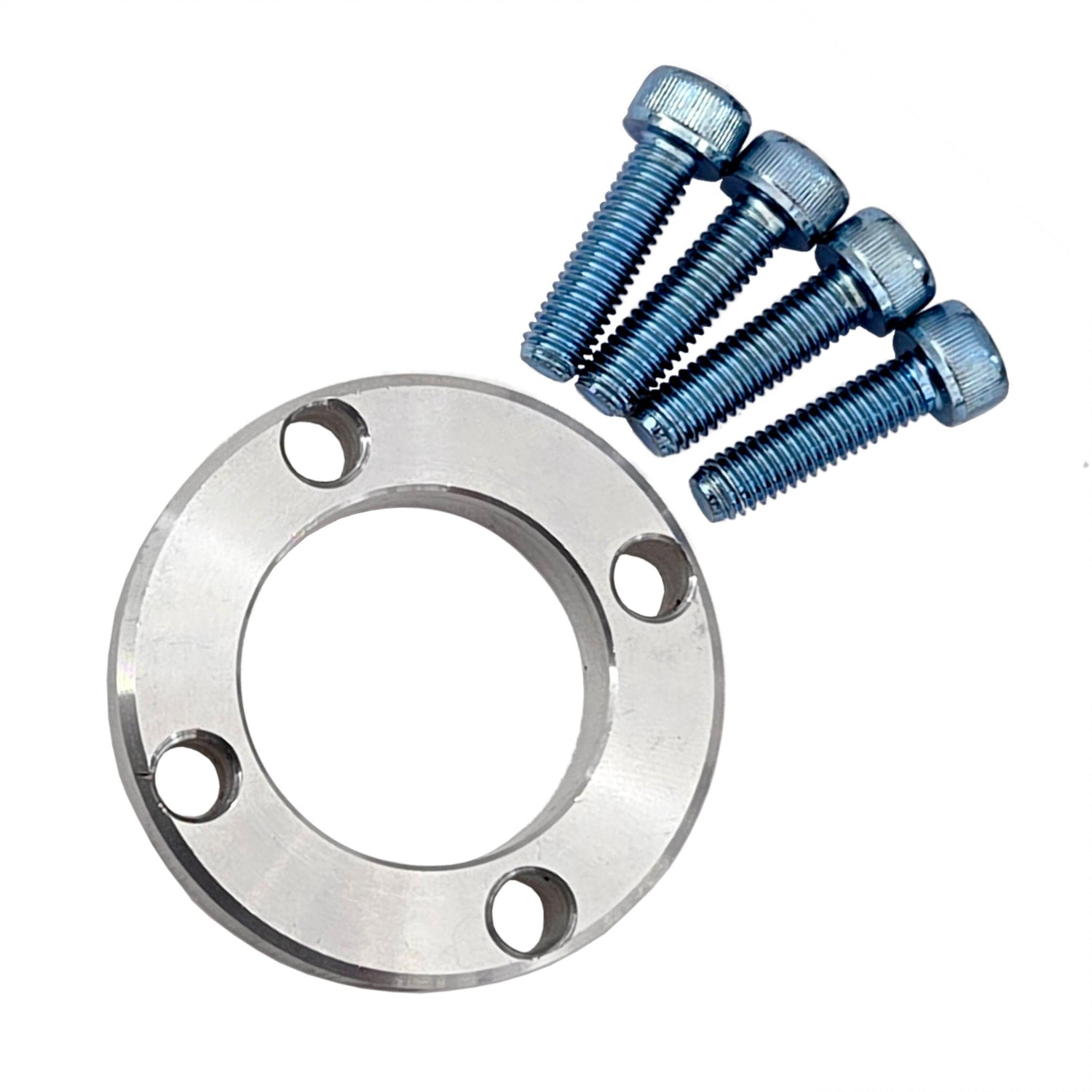

6 Rib TVS 900 Supercharger Pulley upgrades:
65mm, 75mm, 80mm, 85mm, 90mm and 95mm
|
|
 |
90-93
Aluminum Fuel Rail
(IF USING STOCK FUEL PRESSURE REGULATOR YOU WILL ALSO NEED TO PURCHASE "FUEL REGULATOR FITTING" BELOW)
|
$170.00 USD |
 |
94-05
Aluminum Fuel Rail
(IF USING STOCK FUEL PRESSURE REGULATOR ON 94-97 MIATA,YOU WILL ALSO NEED TO PURCHASE "FUEL REGULATOR FITTING" BELOW)
|
$170 USD |
 |
Threaded Injectors - Electrical pigtail and fuel fitting and clip (as shown).
Frequently, enthusiasts are looking to add more fuel without replacing the main injectors. These injectors are threaded with a 5/8-18 straight thread and can be easily adapted to your project. Simply put a dab of RTV (Ultra-Black) on the thread and screw it into the hole using only your hand. Use no tools. Tools could damage the injector.
|

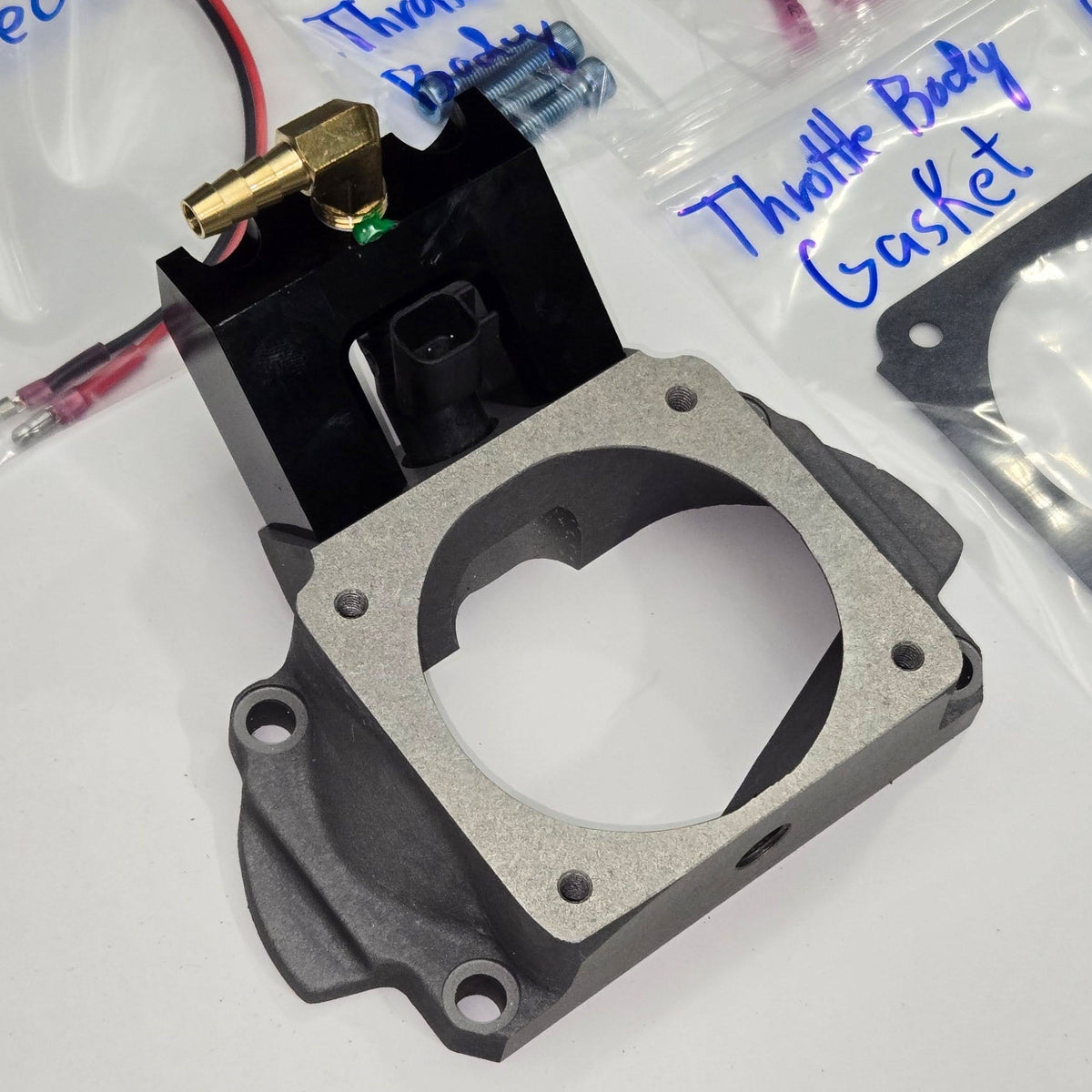

$150 USD | On kits with a dummy throttle body, that is the best place to install the injector. Drill and tap the side of the DTB. Tap the fuel hose that goes to the fuel rail and tee off to go to the injector. The injector fitting has a 1/8” NPT hole to accommodate either a 1/8” npt to 5/16” barb or a 1/8”npt to AN fitting as you wish.
To complement the injector, we also offer the Ecool card (sold separately) that will operate the injector based on boost. It is adjustable and will work on most cars. It simply requires a connection to 12V, GND, #1 injector signal and a vacuum/boost line. |
 |
Set of 4
320cc - correct to compensate for changing to E85. |
$200.00 USD |
 |
90-97
Fuel Regulator Fitting |
$30.00 USD |
 |
70mm Big Throttle Body (BTB) conversion kit for Moss and BRP Hotside
Upgrade to the BTB. The kit includes the replacement bracket, BTB Adapter, BTB, TPS Adapter Assembly and all of the screws. Shown is the 99-05 TPS Adapter Assembly but we will supply the correct one for your model year, anything from 94 to 05.
We use a 70mm TB but we can supply a 75mm if you are headed further than 500WHP. |
$450.00 USD |
 |
Mounting bracket for the BRP/Moss
Hotside MP62 supercharger.
|
|
 |
M10 x 1.25 x 90mm Stud for BRP Moss Hotside Miata Supercharger kit Hardened Steel Rockwell C37
|
|
|
Electronics |  |
Boost Timing cards
|
|
 |
Boost Fuel Control (AFR) cards
|
$300.00 USD |
 |
ECool™ card (additional injectors control card)
|
$300.00 USD |
 |
Wiring Harness patch cords
|
|
FAQ and Answers « | |
